Part-4 PowerShell and DHCP: Setting DHCP server’s “Server Options”





Part – 1 : PowerShell and DHCP : Installing DHCP Server Role on Server 2012

Part – 2 :PowerShell and DHCP : DHCP Post-Install Configuration

Part – 3 :PowerShell and DHCP :  Configuring the DHCP Scope



In my previous post on “DHCP” article series, we had configure the “DHCP Scope” for DHCP server. Now it is time to set the “Sever Options” for the DHCP server.

We are going to set the below server options.

S.No

OptionID

Description

1

6

DNS Server

2

3

 Gateway Address

3

15

DNS Suffix



Setting Server Options

We have to use the “Set-DhcpServerv4OptionValue” cmdlet to set server options for the DHCP Server. In this cmdlet we have to use the “OptionID” and it’s “Value” parameters mainly.

Open DHCP manager from tools and you can see that there is no “Server Options” are configured yet.

clip_image002



Run, “ipconfig /all on client machine and you can see, there is NO entries for, Gateway, Connection specific DNS Suffix and DNS Server ..

clip_image004



Setting DNS Server

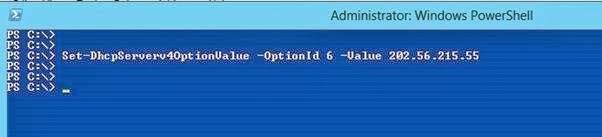

Let’s set the DNS Server option first, the OptionID for DNS server is 6 ,  I am setting , 202.56.215.55  as a DNS Server.

Set-DhcpServerv4OptionValue -OptionId 6 -Value 202.56.215.55

clip_image006



You can also set multiple DNS server by providing multiple comma separated values.

Set-DhcpServerv4OptionValue -OptionId 6 -Value 202.56.215.55 , 202.56.215.54 , 8.8.8.8

clip_image008



Setting Gateway

The option ID for gateway is 3, I am setting the value 192.168.1.99 as a gateway address.

Set-DhcpServerv4OptionValue -OptionId 3 -Value 192.168.1.66

clip_image009



Setting DNS Suffix

The OptionID for DNS Suffix is 15

I am setting my website domain name a DNS suffix.

clip_image010



DHCP Manager

Now open DHCP server manager and click on “Server Options” and you will see all of our entries which we configured and set by PowerShell are there.

clip_image012



Testing

It’s time to test the configuration, Now, do the following on your client machine

1.       Run “Ipconfig /release

2.       Run “Ipconfig /renew

3.       Run “Ipconfig /all

Here you go, you can see all of our configured setting there.

clip_image014



That’s all for now. See you in my next blog article.



Regards

Aman Dhally
